How to improve the hot runner molding system

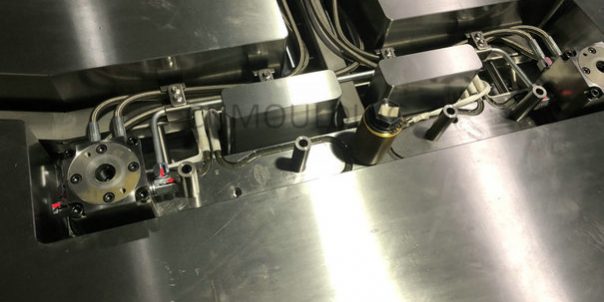

A hot runner system is a molten plastic conveying unit used within an injection mold. The resin travels through the inlet, down into the manifold which then splits into the various nozzles. And through injection points (or gates) into the final mold cavity where the final part is formed.
Speed, flexibility, and consistent part quality are the buzzwords for staying competitive in the cost-conscious. American large automotive plastics molding marketplace.
When an MI-based corporation. A major automotive trim manufacturer chose to upgrade its hot runner systems. It turned to Peabody, MA-based Synventive Molding Solutions as its partner. Because of the technological advantage that the next generation smart molding systems could offer. Seeking to benefit from the ability to produce automotive trim parts at high speed with exceptional finish quality. And part-to-part consistency. The company invested in Synventive Dynamic Feed hot runners to achieve a competitive technical, and processing edge. Plastic molding china. Furthermore, the molder was able to successfully implement a family mold that produces separate. And distinct parts. Parts that exhibit exceptional dimensional stability, and consistency.A target that the company struggled with until a smart molding system was used to process them.
Hot runner system starting up
In June of 2000, the entire plastics world invaded Chicago, IL – specifically McC McCormick Place. To attend the National Plastics Exposition. At the show. Synventive unveiled the Dynamic Feed smart molding system. Creating lots of interest in a hot runner system. That brings incredible levels of china injection molding control. Accuracy of the injection molding process. Engineering managers at this automotive trim molder were very interested in the new technology. In fact, they were among the first customers to see a presentation. On smart molding and ultimately ordered five complete systems from Synventive in the summer of 2001.
The Dynamic Feed hot runner system is a proven technology. That delivers unprecedented levels of control to the processor. Offering molders the ability to individually control the fill. And pack rates at each gate of a multi-cavity or family mold. Or at each individual gate in a large multifaceted mold. The key to the control of this smart hot runner technology is that the control is in the hot runner nozzle. Allowing molders to control the entire shot process with a closed-loop, real-time controller. Unlike machine optimization or mold balancing systems that seek to control elements other than the actual injection molding process. Smart molding gives processors control of the very heart of the injection molding process.
After running a detailed internal return on investment analysis of the system. The company could see that a smart molding system offered the company a clear competitive advantage. The new technology was ordered on a tight timetable that gave Synventive just six weeks to deliver. In addition to the tight delivery schedule. Synventive needed to train the molder’s people in the optimal use and operation of smart molding technology.
According to the trim tooling manager at this automotive parts molder. The goal was to gain a speed and quality advantage in the marketplace with a hot runner system. That had a quick setup time with excellent part-to-part consistency. The company turned to Synventive for those answers when it initiated this family molding program.
The Michigan firm planned to use the Dynamic Feed systems to help mold automotive instrument panel shrouds. A job that integrated several complicated elements into the mold. It’s a mold builder. Delta Tooling of Auburn Hills, MI, supplied the family mold for the project. The mold contained finely detailed elements plus a second molding operation to overmold a different color material onto the part.
The family mold for the instrument panel shroud featured a small panel accent on the right side. And a larger panel accent on the left side, with a cutout for an air conditioner vent. In addition, the shroud has a contrasting color accent molded onto it. Injection molding china The technical issue with the mold was how to manage it. The three-to-one ratio difference in shot weights for each of the accent panels. A situation where the machine must seal off the part in the mold to create a parting line with the over-molding process.
Essential for the processor to have finite control of the injection fill and pack profiles of the cycle
With the seal-off measuring just three-eighths of an inch. Where normal injection molding standards are typically three inches or more. Coupled with the complexity of dissimilar-sized parts being molded simultaneously. It was clear that standard hot runner technology was not going to offer the speed and accuracy that the company desired. The molding process to manufacture the instrument shroud is very precise. To ensure quality and cavity sizes. Plus the seal-off tolerances meant that it was essential for the processor to have finite control of the injection fill. And pack profiles of the cycle.
This was even more essential due to the seal-off tolerances. Any overshot and the entire part would be ruined. Similar to a waffle iron with too much batter in it that spills all over the countertop. The mold seal will blow if the mold is overshot, requiring a very precise injection molding process. The entire process took place in a family mold, also adding to the complexity of the molding process.
Synventive Molding Solutions recommended a Dynamic Feed system based on the need for precision. And due to the dissimilar sized accent panels being molded. That was ruled out using a more conventional sequential valve-gated system. Because of the need to balance the mold parameters and the injection molding process so precisely.
Hot runner program going online
Before the hot runner program could begin. Synventive and Delta Tooling are needed to test the molding process. And machinery to assure their client that the hot runner system. And the family mold would work as advertised. The two firms tested the systems and mold at Delta’s test center. Where the two companies had a short learning curve implementation. The new smart molding technology and family mold. The focus of the testing was on start-up procedures. Which proved to be easily mastered. Moreover. The testing allowed for the complex family mold to be dialed in by the Synventive and Delta technicians.
Who could adjust the rate of fill and pack pressures needed to create dimensionally stability? Top-quality parts cycle after cycle? Most importantly. The test site allowed the Synventive team to bring together the injection molding machines. The family mold, the smart molding system. And the plastic material suppliers under one roof to get a real-world construct. How the program would ultimately come together. All parties at the site were very pleased with the consistency, and repeatability of the smart molding process.
Meanwhile, the Synventive team was working overtime to make sure. The Dynamic Feed systems would be delivered on time and to specification. The order was met by coordinated efforts in Peabody with the engineering. And the manufacturing staff. Although the timing was tight and Synventive. And Delta had to put in long hours to make it happen. Including training the molder’s operators on using the system at the plant. Synventive was able to deliver the systems on time and on spec to their customer.
Hot runner program up and running
Smart molding technology was immediately embraced by the plant personnel. “Exceptional” is how the engineers describe the Dynamic Feed system, noting, “It’s a processor controller on steroids.”
The quality and repeatability of the system. The driver for purchasing the hot runner system. Proved to be exactly what the company desired. While the press speed and cycle times remained mostly the same. The flexibility and the part-to-part quality of the automotive instrument shroud program was something that engineers say is “…. A new level of sophistication for the industry that really narrows the processing window.” Due to the overwhelming response to the smart molding technology. Which the molder feels has placed the company about twelve months ahead of other automotive trim manufacturers.
The company has ordered more systems and plans to have three separate platforms running with Dynamic Feed in the near future. While currently produces about 250,000 parts a year with its Dynamic Feed systems.
The company expects to rapidly increase these numbers in 2003. In fact, plant managers across the company are clamoring for systems of their own. Due to the success that the Tennessee plant is experiencing with smart molding technology.
The trim molder also has expanded its technology partnership with Synventive Molding Solutions. Find more programs and products that can be run with smart molding to drive family molding opportunities. Plus retrofitting Dynamic Feed to existing molds to drive quality enhancements on these products.
