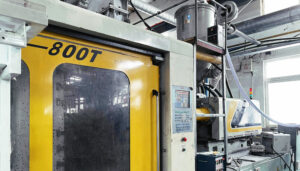

What is Injection Molding
Injection molding is a manufacturing process used to produce plastic parts in large volumes with high precision and consistency. The process involves melting plastic material and injecting it into a custom-designed mold cavity, where it cools and solidifies into the final shape.
It is widely used in industries such as automotive, electronics, medical devices, and consumer products because it allows complex geometries to be produced efficiently at low cost per unit in mass production.
In simple terms, injection molding turns plastic pellets into finished parts through heat, pressure, and a steel mold.

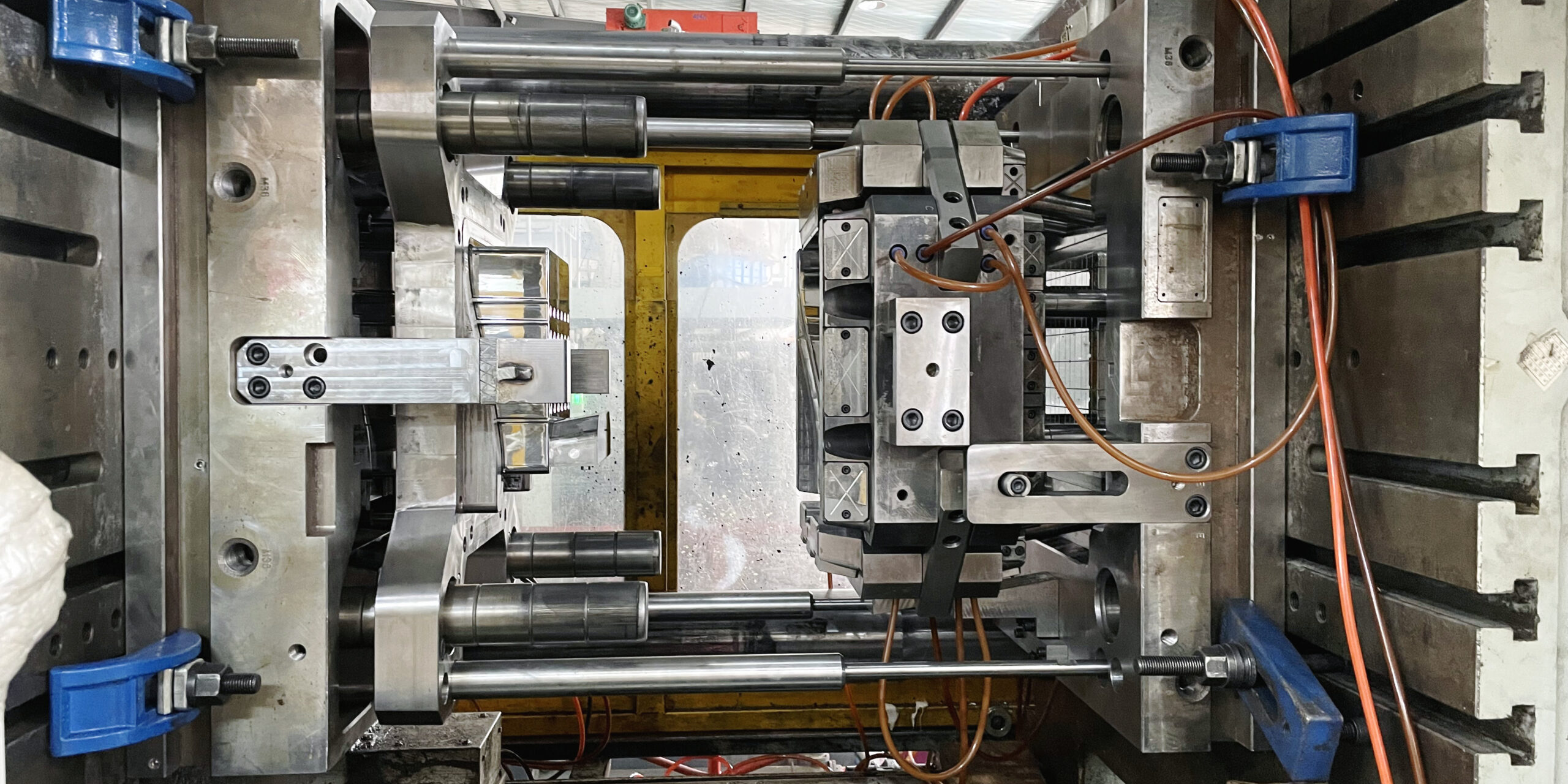

Injection Molding Manufacturing Services in China
How Injection Molding Works
The injection molding process follows a repeatable cycle:
1. Material Feeding
Plastic raw material, usually in pellet form, is fed into the machine hopper.
2. Melting
The pellets are heated inside a barrel and gradually melted into a uniform molten state.
3. Injection
The molten plastic is injected under high pressure into a steel mold cavity.
4. Cooling
The material cools inside the mold and begins to solidify into the desired shape.
5. Ejection
Once fully cooled, the mold opens and ejector pins push the finished part out.
6. Cycle Repeats
The mold closes again and the process repeats for mass production.
This cycle can range from a few seconds to a few minutes depending on part complexity and material.
What is Injection Molding
Materials Used
Injection molding supports a wide range of thermoplastic materials, each with different properties.
Common materials include:
- ABS (Acrylonitrile Butadiene Styrene)
Good strength and surface finish, widely used in consumer and automotive parts. - PC (Polycarbonate)
High impact resistance and transparency. - PA66 (Nylon 66)
Strong mechanical properties, often used in engineering and automotive applications. - PA66 GF (Glass-filled Nylon)
Enhanced strength and heat resistance, commonly used in structural automotive parts. - PBT (Polybutylene Terephthalate)
Good electrical properties and dimensional stability.
Material selection depends on mechanical requirements, temperature resistance, cost, and application environment.
Applications
Injection molding is used across nearly every manufacturing industry due to its scalability and flexibility.
Automotive Industry
- Interior trims
- Connectors
- Structural brackets
- Engine bay components
Electronics Industry
- Device housings
- Insulation parts
- Connectors
Medical Industry
- Disposable components
- Device housings
- Precision housings
Consumer Products
- Household appliances
- Packaging components
- Everyday plastic items
Because molds can be precisely engineered, injection molding is suitable for both simple and highly complex geometries.
Advantages
Injection molding is one of the most efficient manufacturing methods for plastic parts production.
Key advantages include:
- High production efficiency
Once the mold is made, parts can be produced rapidly in large volumes. - Consistent quality
Each part maintains the same dimensions and structure. - Low unit cost in mass production
High initial mold cost is offset by low per-part cost. - Complex design capability
Enables detailed and intricate geometries. - Wide material selection
Supports a broad range of engineering plastics.
This is why injection molding is the preferred method for automotive and industrial production.
FAQ – Injection Molding
What is injection molding used for?
Injection molding is used to produce plastic parts in industries such as automotive, electronics, medical devices, and consumer products.
Is injection molding expensive?
The mold cost can be high initially, but the cost per part becomes very low in mass production, making it cost-effective for large volumes.
What materials can be used in injection molding?
Common materials include ABS, PC, PP, PA66, PA66 GF, and PBT, depending on mechanical and thermal requirements.
Why is injection molding widely used in automotive manufacturing?
Because it provides high precision, repeatability, and the ability to produce complex parts at scale with stable quality.
