Precision Molding for Medical Devices: Case Study of a Multi-functional Surgical Dissector
Manufacturing components for surgical instruments requires more than just standard injection molding; it demands absolute precision and strict adherence to medical safety standards. Consequently, CNMOULDING (Shanghai) has developed specialized expertise in producing high-quality molds for single-use medical devices, such as surgical dissector housings, ergonomic buttons, and rotary joints.
The Challenges of Surgical Instrument Manufacturing

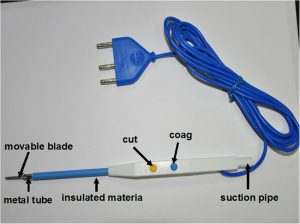

Surgical instruments, especially multi-functional dissectors, involve complex internal mechanisms. Specifically, the assembly requires every plastic component—from the outer shell to the internal rotary connectors—to fit with zero-margin error.
Tight Tolerances: First, medical devices often require tolerances within microns to ensure smooth mechanical movement.
Biocompatible Materials: Furthermore, these parts must utilize medical-grade resins (such as PC, ABS, or specialized PPSU) that withstand sterilization processes.
Surface Integrity: Moreover, the exterior must be free of any flash or sharp edges to ensure surgeon comfort and patient safety.
Our Specialized Manufacturing Process in Shanghai
At our Shanghai facility, we recently completed a project for a leading domestic medical company, delivering a full-range solution for their surgical dissector line. Specifically, our process focused on:
Medical-Grade Tooling: We utilized high-grade stainless steel (S136) with mirror-polishing to ensure the internal surfaces of the housings are ultra-smooth. As a result, this reduces friction for the internal moving parts.
ISO 13485 Compliant Environment: Next, we produce these sensitive parts in a controlled environment to prevent contamination. This is crucial for single-use consumables that must remain sterile.
Insert Molding for Rotary Joints: In addition, our expertise in insert molding allows us to combine plastic and metal components seamlessly for durable rotary connectors and specialized surgical buttons.
Advanced Quality Verification
To ensure every batch meets the client’s rigorous standards, we implement a specialized medical QC protocol:
Dimensional Precision: We use high-precision CMM (Coordinate Measuring Machines) to verify the alignment of every button and joint.
Functional Testing: Subsequently, we perform stress tests on the rotary joints to ensure they operate smoothly under surgical conditions.
Traceability: Finally, we maintain full material traceability for every production run, ensuring compliance with global medical regulations.
Why Partner with CNMOULDING for Medical Projects?
Choosing CNMOULDING means choosing a partner who understands the high stakes of the medical industry. Ultimately, our combination of advanced Shanghai-based engineering and strict quality management makes us a reliable source for:
Disposable surgical tool housings
Medical-grade buttons and actuators
Complex rotary joints and fluid connectors
Are you developing a new medical device? Contact our Shanghai engineering team today to see how our precision molding and assembly services can bring your project to market with confidence.
